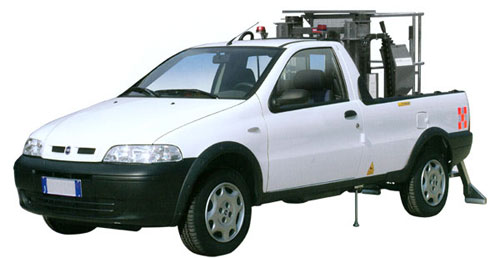

The Platform

The Platform is made by a lifter and a lifting box.

Lifter is composed by two hyd cylinders operating a gear. All parts are self lubricating metal.

The main box supports 2 operators and slide longitudinally oleodynamically by actuator.

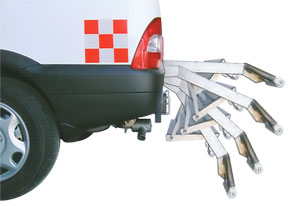

The Stabilizer assembly consists of 2 lateral stab actuators positioned near by the main cabin and by a flag type stabilizer with incorporated a step to easy access the main "working Box".

The operation is hydraulic type obtained by a proportional distributor with two and three positions.

A safety automatic closure is fitted in the upper enter/exit door.

Safety lights fitted on upper part of cabin

Anti-slip step access to box

To comply with some airport rules a special exhaust lead is installed

Stabilizers are controlled by a reduction micrometric valve for the automatic levelling of vehicle.

Safety separation between main box and lifting box.

Oleo Dynamic system

The oleo dynamic system comprises of an oleo dynamic pump calibrated for a max press of 130 bars, driven by the engine of the vehicle.

Linking engine-pump is obtained by an electromagnetic switch commanded by dedicated switches incorporated in the oleo dynamic distributors.

Max regulating press valve: set the pressure for the operation of the hydraulic system.

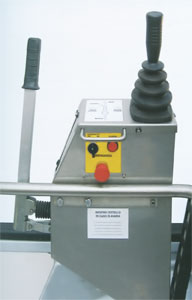

Commands Features:

When platform is extended start and shut of engine commands are available .

Emergency hand pump available on ground for emergency operations.

Stabilizers command lever.
