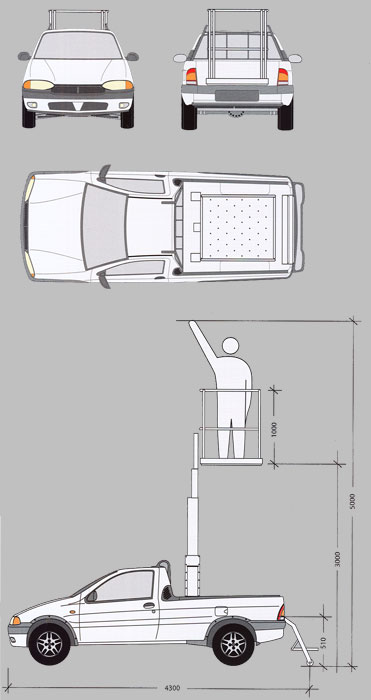

PE 3000/B - 4000 DataSheet
Platform
It is an ideal equipment for capacity and versatility.
The use is recommended for most of routine maintenance operations for transit or extended a/c checks.
This model of platform is an our exclusive Product and we also distribute it in the market.
The versatility and simple use makes this Platform very useful to reach many of the most important places
of the a/c during maintenance operations.
Built in stainless steel metal.
It can be installed on most of Pick-Up vehicles available in the market.
| Technical features: |
| Max Weight |
Kg 200 |
| Lifting Speed |
MTs/min 25 |
| Weight |
KGs400 |
| Min Heights From Floor |
mm 510 |
| Max Heights From Floor |
mm 3300 |
| Width |
mm 745 |
| Length |
mm 890 |
| Longitudinal Move |
mm 340 |
FEATURES
Platform including rear stabilizers are made by stainless steel not painted. All is protected against corrosion.
SAFETY USE
Platform is conform with actual norms of health and safety.
Use of platform is only allowed when Parking Brake is set and stabilizers completely extended.
Automatic engine shut down in case of accidental intent to insert gear with stabilizers extended.
Platform commands only with "Present Hand" Hand Pump is available in case of failure.
PE 3000/B - 4000
Platform
